Iscar

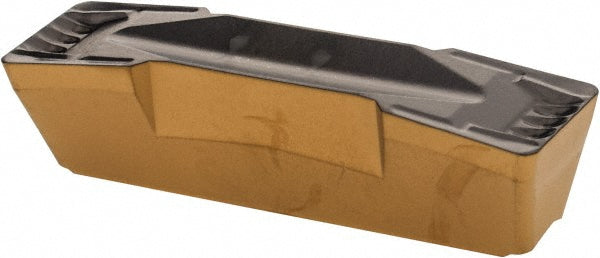

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405082
MFR# 6405082ISO/ANSI# ISO 13399Series Cut Grip
$43.65List $55.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405082 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size808
Insert size code808
Insert styleGDMY
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1890
Maximum depth of cut range0.1500 to 0.2000
Msc manufacturer numberGDMY 808
Multi use toolYes
Overall length1.1800
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
