Iscar

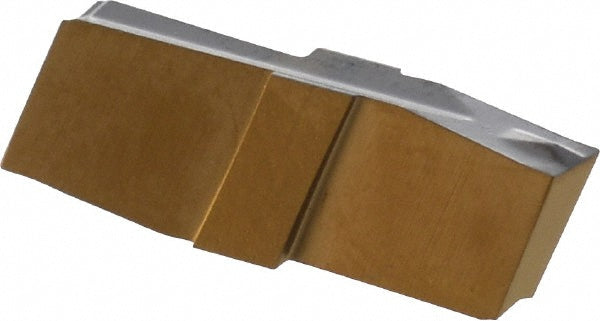

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405085
MFR# 6405085ISO/ANSI# ISO 13399Series Cut Grip
$36.54List $46.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405085 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0060
Cutting width0.0940
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size239015
Insert size code239015
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1850
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
