Iscar

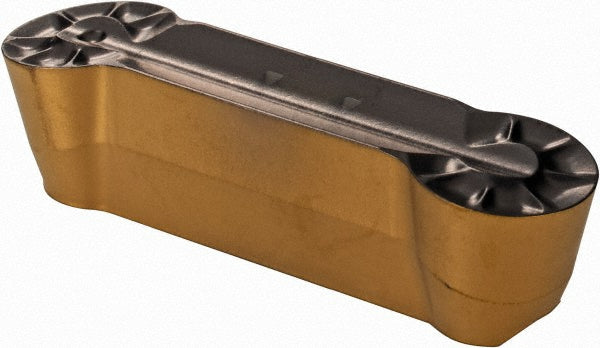

GDMY 840 Carbide Insert, Grade IC830, AlTiN - Iscar 6405098
MFR# 6405098ISO/ANSI# GDMY 840Cat# GDMY 840Series Cut Grip
$45.06List $57.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6405098 is a GDMY 840 carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloys, titanium.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.1575
Cutting height0.2520
Cutting width0.3150
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialCarbide
Insert size840
Insert size code840
Insert styleGDMY
Iso codeGDMY 840
Manufacturers catalog numberGDMY 840
Manufacturer gradeIC830
Maximum depth of cut0.9843
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Multi use toolYes
Overall length1.1811
Primary workpiece materialSuperalloys; Titanium
RakePositive
Rake angle7
StandardsISO 13399
