Iscar

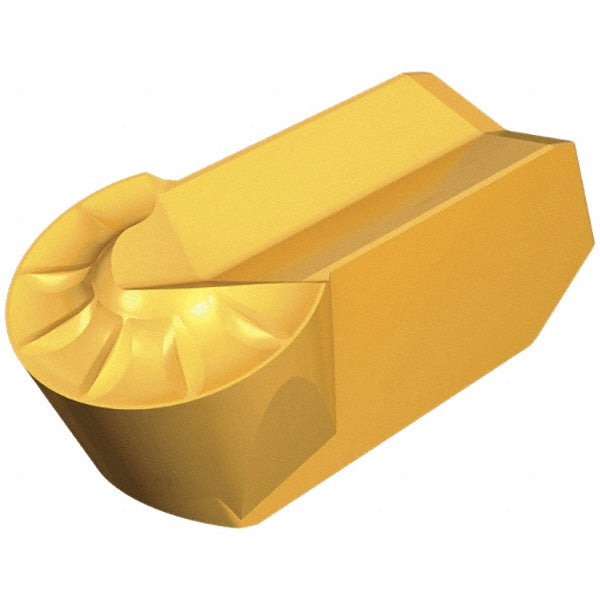

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6405102
MFR# 6405102ISO/ANSI# ISO 13399Series Cut Grip
$23.27List $29.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405102 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerFY
Coating finishAlTiN
Coating processPVD
Corner radius in1/8
Cutting width0.2500
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size635
Insert size code635318
Insert styleGIMY
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeFine-Grained
Maximum depth of cut0.1220
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.6020
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
