ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405110
MFR# 6405110ISO/ANSI# ISO 13399Series Cut Grip
$37.79List $48.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description

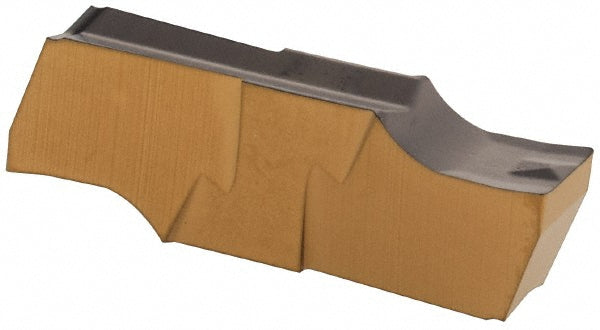

The Iscar 6405110 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerP
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting width0.1252
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size318020
Insert size code318020
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC830
Msc manufacturer numberGIPI 3.18-0.20
Multi use toolYes
Overall length0.6180
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
