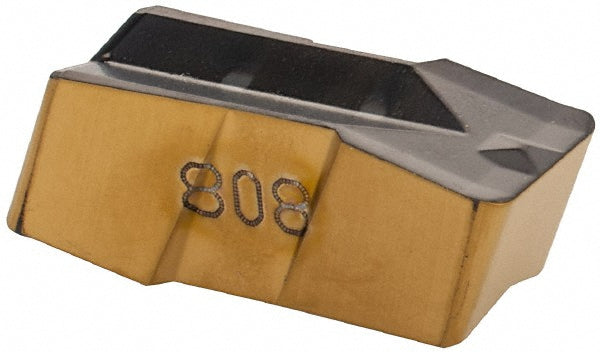

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6405115
MFR# 6405115ISO/ANSI# ISO 13399Series Cut Grip
$48.25List $61.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405115 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerE
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size635080
Insert size code635E080
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.1496
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIP 6.35E-0.80
Multi use toolYes
Overall length0.6024
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
