Iscar

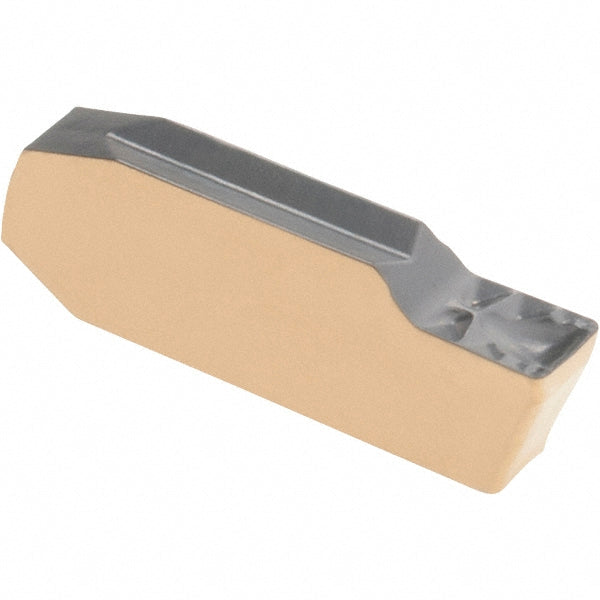

Solid Carbide Insert, Grade IC830, TiAlN - Iscar 6405129
MFR# 6405129Series Cut Grip
$17.64List $22.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405129 is a solid carbide indexable insert, grade IC830, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size304
Insert styleGIMIY
Manufacturer gradeIC830
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6180
Single or double endSingle
