Iscar

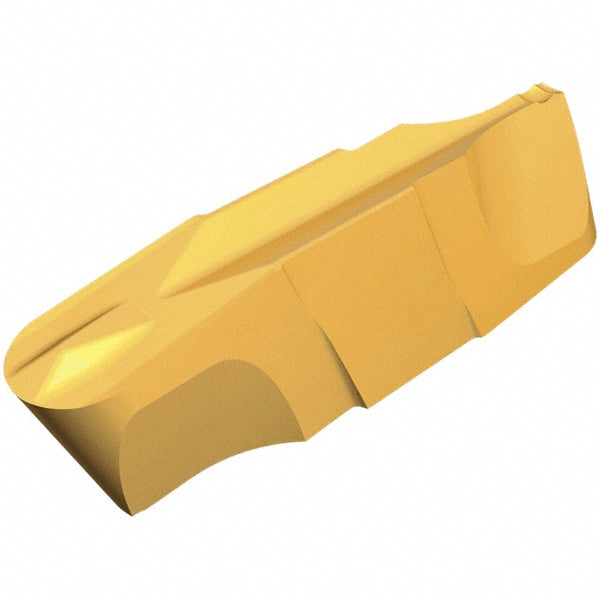

ISO 13399 Solid Carbide Insert, Grade IC830, AlTiN - Iscar 6405144
MFR# 6405144ISO/ANSI# ISO 13399Series Cut Grip
$53.02List $67.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC830
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405144 is a ISO 13399 solid carbide indexable insert, grade IC830, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerUN
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutting width0.1180
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size300150
Insert size code300150
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC830
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
