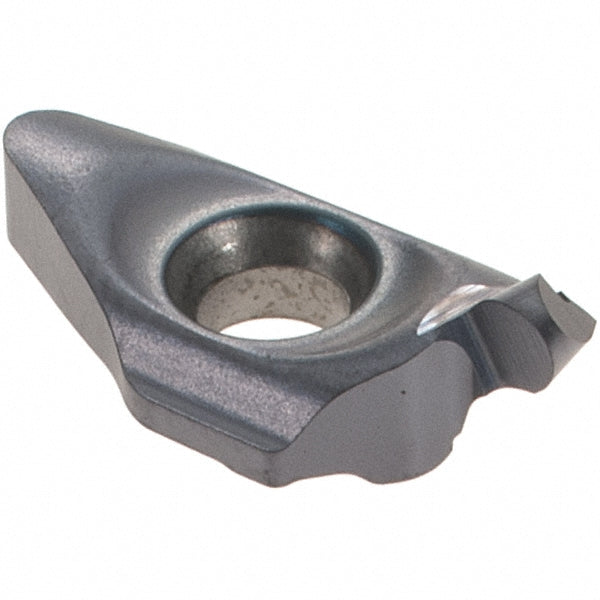

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6405189
MFR# 6405189ISO/ANSI# ISO 13399Series Min-Cut
$37.01List $47.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405189 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting width0.0787
Full radiusYes
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size8200100
Insert size code8200100
Insert styleMIUR
Iso codeISO 13399
Manufacturer gradeIC908
Maximum depth of cut0.0197
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Primary workpiece materialUniversal
Single or double endSingle
StandardsISO 13399
