Iscar

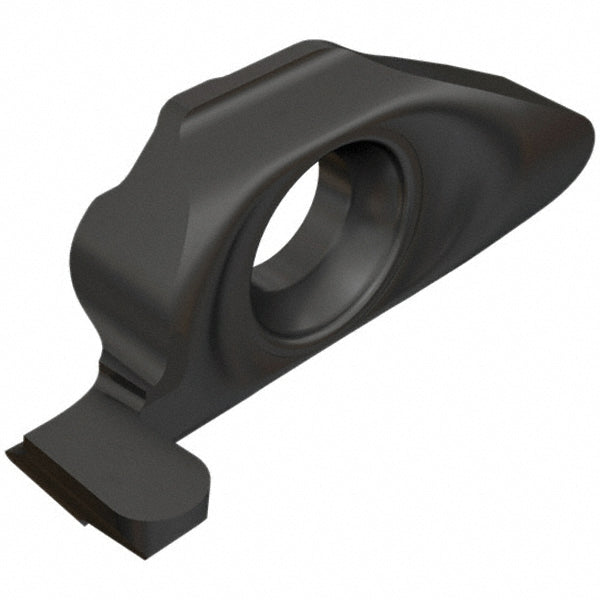

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6405192
MFR# 6405192ISO/ANSI# ISO 13399Series Min-Cut
$34.83List $44.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405192 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting width0.0472
Full radiusNo
Insert handNeutral
Insert holding methodClamp; Screw
Insert materialSolid Carbide
Insert size8120005
Insert size code8120005
Insert styleMIGR
Iso codeISO 13399
Manufacturer gradeIC908
Maximum depth of cut0.0197
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Primary workpiece materialUniversal
Single or double endSingle
StandardsISO 13399
