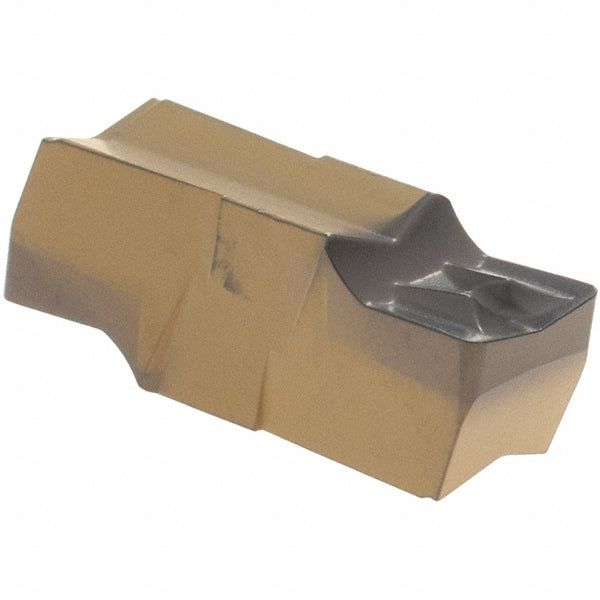

GIFI 5.00E-0.50 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405207
MFR# 6405207ISO/ANSI# GIFI 5.00E-0.50Cat# GIFI 5.00E-0.50Series Cut Grip
$47.17List $60.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6405207 is a GIFI 5.00E-0.50 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processCVD
Corner radius0.0200
Cutting height0.1970
Cutting width0.1970
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size500E050
Insert size code500E050
Insert styleGIFI
Iso codeGIFI 5.00E-0.50
Manufacturers catalog numberGIFI 5.00E-0.50
Manufacturer gradeIC8250
Maximum depth of cut0.6100
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6180
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
