Iscar

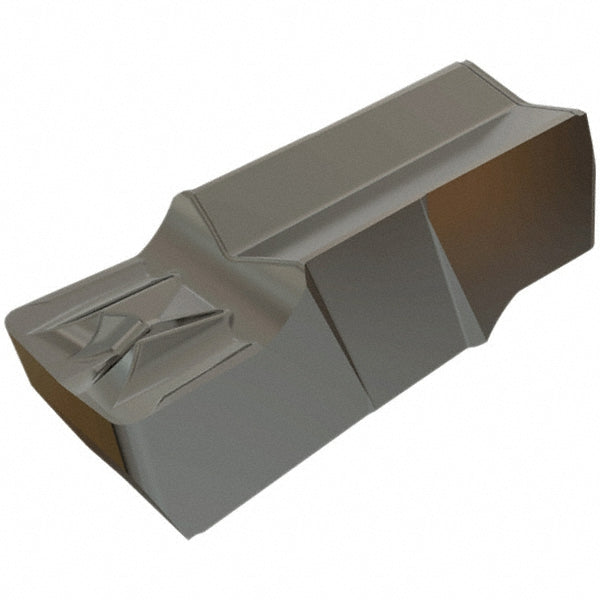

ISO 13399 Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405212
MFR# 6405212ISO/ANSI# ISO 13399Series Cut Grip
$42.08List $53.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6405212 is a ISO 13399 carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerE
Coating finishAl2O3
Coating processPVD
Corner radius0.0157
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size400040
Insert size code400E040
Insert styleGIFI
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolYes
Overall length0.618
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle8
StandardsISO 13399
