Iscar

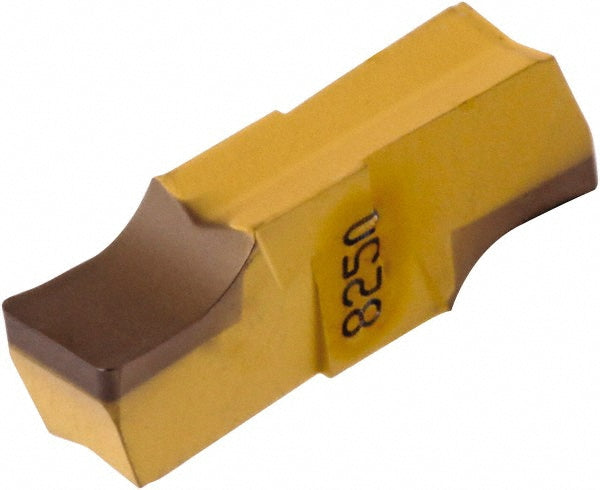

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405214
MFR# 6405214ISO/ANSI# ISO 13399Series Cut Grip
$42.08List $53.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6405214 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processCVD
Corner radius0.0079
Cutting height0.1970
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert seat size4
Insert size4
Insert size code400E040
Insert styleGIPI
Iso codeISO 13399
Lead angle0
Manufacturer gradeIC8250
Maximum depth of cut0.6100
Maximum depth of cut range0.3000 to 1.0000
Msc manufacturer numberGIPI 4.00E-0.40
Multi use toolYes
Overall length0.6180
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle0.00
Single or double endDouble
StandardsISO 13399
