Iscar

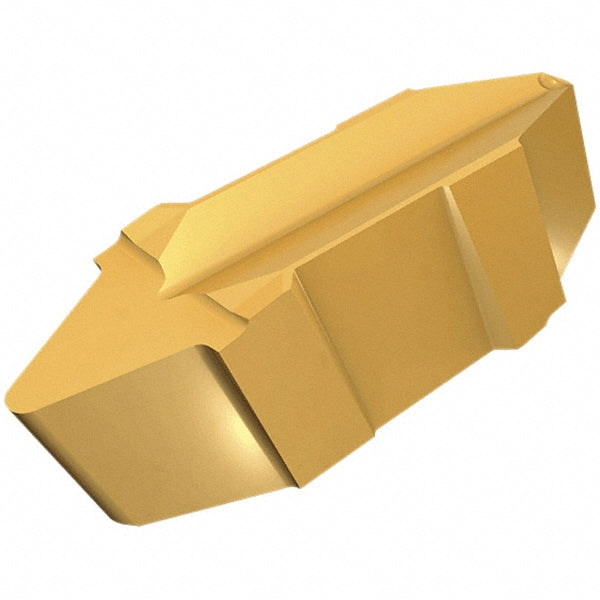

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405217
MFR# 6405217ISO/ANSI# ISO 13399Series Cut Grip
$51.46List $65.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6405217 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Coating finishAl2O3
Coating processPVD
Corner radius0.0120
Cutting width0.1587
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size4356
Insert size code43561
Insert styleGPV
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.1346
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.6024
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
