Iscar

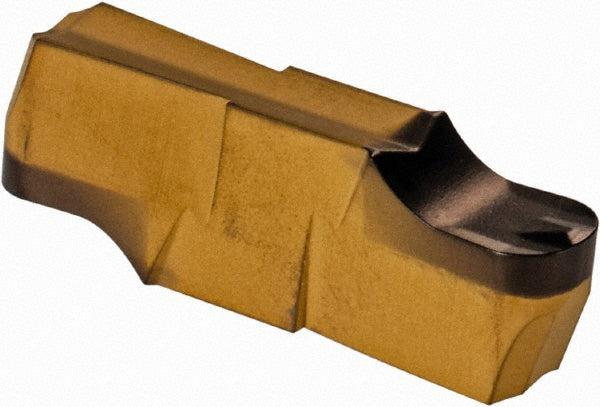

GIPI 3.18-1.59 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405225
MFR# 6405225ISO/ANSI# GIPI 3.18-1.59Cat# GIPI 3.18-1.59Series Cut Grip
$42.94List $55.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6405225 is a GIPI 3.18-1.59 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processCVD
Corner radius0.0630
Cutting height0.1970
Cutting width0.1250
Full radiusYes
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size318159
Insert size code318159
Insert styleGIPI
Iso codeGIPI 3.18-1.59
Manufacturers catalog numberGIPI 3.18-1.59
Manufacturer gradeIC8250
Multi use toolYes
Overall length0.6180
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
