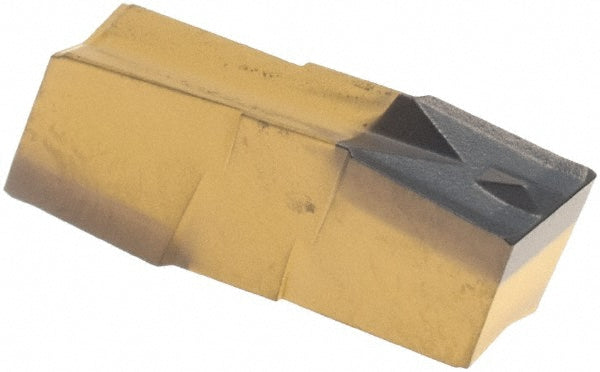

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405228
MFR# 6405228ISO/ANSI# ISO 13399Series Cut Grip
$42.08List $53.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6405228 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerP
Coating finishAl2O3
Coating processPVD
Corner radius0.0040
Cutting width0.1665
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size423010
Insert size code423010
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.5120
Maximum depth of cut range0.3000 to 1.0000
Multi use toolNo
Overall length0.6024
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
