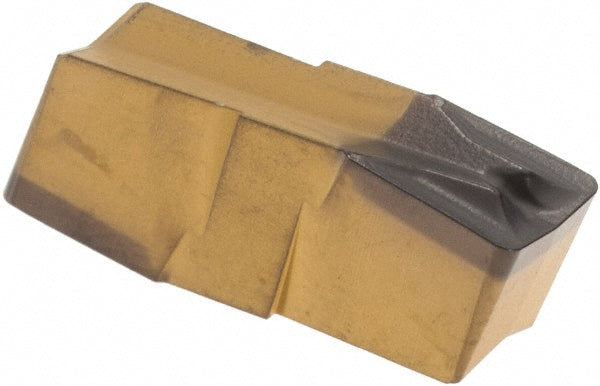

ISO 13399 Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405230
MFR# 6405230ISO/ANSI# ISO 13399Series Cut Grip
$47.09List $60.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialCarbide
CoatingAl2O3
Description
The Iscar 6405230 is a ISO 13399 carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processCVD
Corner radius0.0217
Cutting width0.1882
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert size478055
Insert size code478055
Insert styleGIF
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.5118
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Multi use toolNo
Overall length0.6024
Overall width0.1882
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle7
StandardsISO 13399
