Iscar

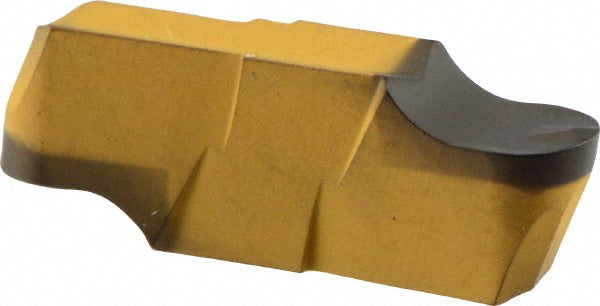

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6405248
MFR# 6405248ISO/ANSI# ISO 13399Series Cut Grip
$58.95List $75.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6405248 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Chip breakerUR
Coating finishAl2O3
Coating processCVD
Corner radius0.0787
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size40020
Insert size code40020
Insert styleGIPI
Iso codeISO 13399
Manufacturer gradeIC8250
Multi use toolYes
Overall length0.6181
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
RakePositive
Rake angle8.00
Single or double endDouble
StandardsISO 13399
