Iscar

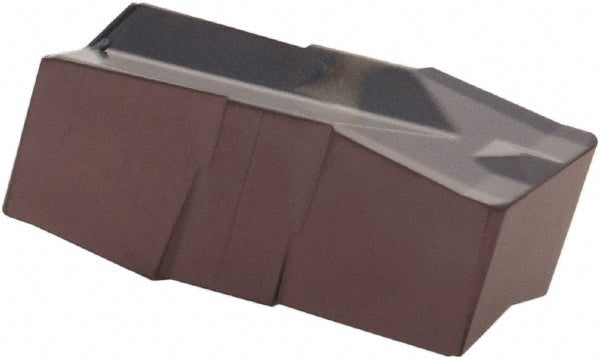

ISO 13399 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 6405347
MFR# 6405347ISO/ANSI# ISO 13399Series Cut Grip
$43.18List $55.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405347 is a ISO 13399 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerE
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1970
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size500040
Insert size code500E040
Insert styleGIP
Iso codeISO 13399
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberGIP 5.00E-0.40
Multi use toolYes
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
