Iscar

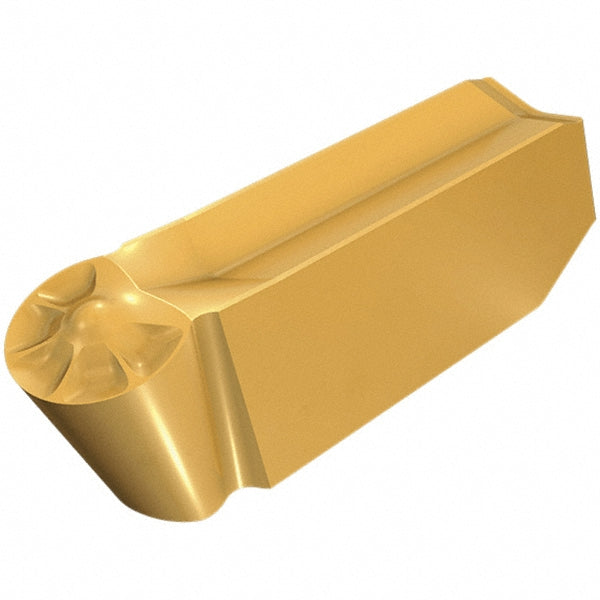

ISO 13399 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 6405351
MFR# 6405351ISO/ANSI# ISO 13399Series Cut Grip
$23.27List $29.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405351 is a ISO 13399 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size400200
Insert size code400200
Insert styleGIPY
Iso codeISO 13399
Manufacturer gradeIC806
Material gradeSubmicron
Multi use toolYes
Overall length0.6024
Primary workpiece materialSuperalloy; Titanium
RakePositive
Rake angle7.00
Single or double endSingle
StandardsISO 13399
