Iscar

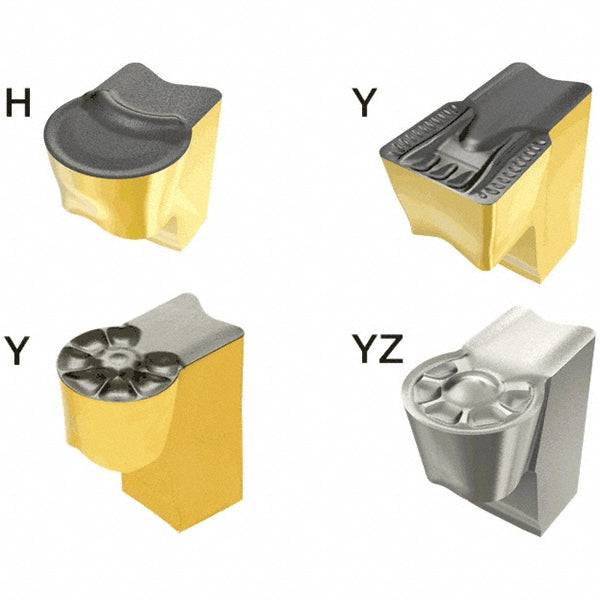

ISO 13399 Solid Carbide Insert, Grade IC806, AlTiN - Iscar 6405375
MFR# 6405375ISO/ANSI# ISO 13399Series Sumo-Grip
$22.93List $29.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC806
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405375 is a ISO 13399 solid carbide indexable insert, grade IC806, AlTiN coated. Suited for superalloy, titanium.
Specifications
Chip breakerB
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting width0.2360
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size608
Insert size code608Y
Insert styleTAGB
Iso codeISO 13399
Manufacturer gradeIC806
Material gradeSubmicron
Maximum depth of cut0.1420
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Primary workpiece materialSuperalloy; Titanium
RakePositive
Single or double endSingle
StandardsISO 13399
