Iscar

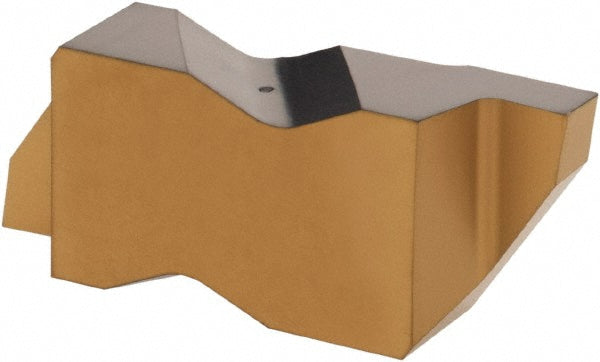

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6405385
MFR# 6405385ISO/ANSI# ISO 13399Series Notch-Grip
$26.24List $33.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405385 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting width0.0880
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size3088
Insert size code3088
Insert styleING
Iso codeISO 13399
Lead angle3
Manufacturer gradeIC808
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Msc manufacturer numberING 3088R/L
Multi use toolNo
Overall length0.9000
Primary workpiece materialUniversal
RakePositive
Rake angle3.00
Single or double endDouble
StandardsISO 13399
