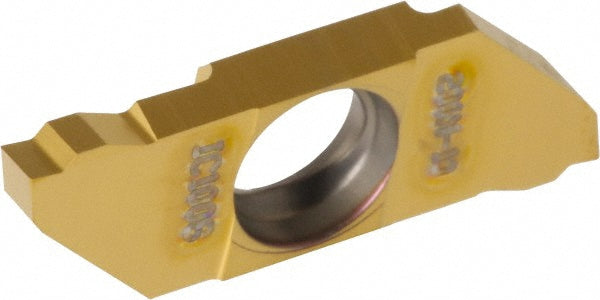

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN/TiN - Iscar 6405402
MFR# 6405402ISO/ANSI# ISO 13399Cat# SCIR 22-200N-10Series Swisscut
$45.53List $58.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Iscar 6405402 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN/TiN coated. Suited for universal.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0039
Cutting height0.2756
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code22
Insert styleSCIR
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberSCIR 22-200N-10
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.2756
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
