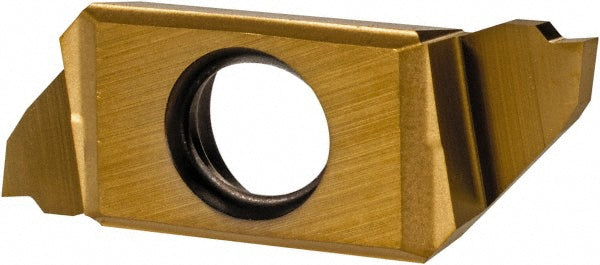

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6405403
MFR# 6405403ISO/ANSI# ISO 13399Cat# SCIR 22-100N-00Series Swisscut
$45.53List $58.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405403 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Cutting height0.2756
Cutting tool applicationGrooving; Parting
Cutting width0.0394
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code22
Insert styleSCIR
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberSCIR 22-100N-00
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1575
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
