Iscar

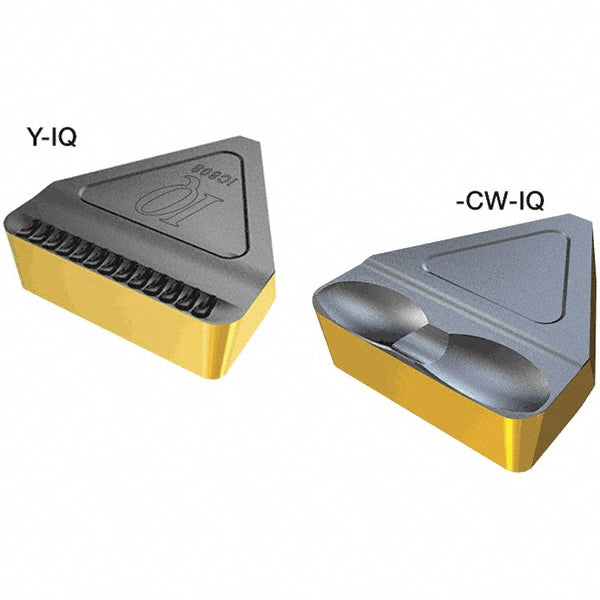

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6405408
MFR# 6405408ISO/ANSI# ISO 13399Series Cut Grip
$43.18List $55.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405408 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY-IQ
Coating finishAlTiN
Coating processPVD
Corner radius0.0470
Cutting height0.1990
Cutting width0.4720
Full radiusNo
Hole diameter0.2170
Included angle degree61
Insert handNeutral
Insert materialSolid Carbide
Insert size1212
Insert size code1212YIQ
Insert styleTIGER
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeFine-Grained
Multi use toolNo
Overall length0.5550
Primary workpiece materialUniversal
Single or double endSingle
StandardsISO 13399
