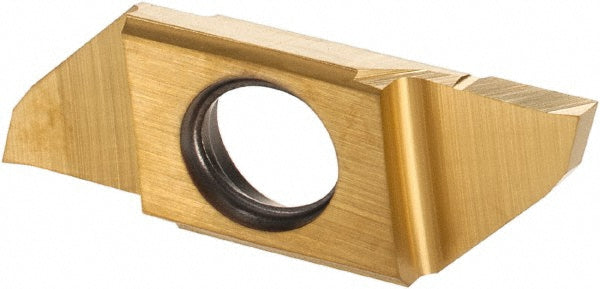

SCIR 22-150NP05 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6405417
MFR# 6405417ISO/ANSI# SCIR 22-150NP05Cat# SCIR 22-150NP05Series Swisscut
$45.53List $58.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405417 is a SCIR 22-150NP05 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting width0.0591
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size22
Insert size code22150NP05
Insert styleSCIR
Iso codeSCIR 22-150NP05
Manufacturers catalog numberSCIR 22-150NP05
Manufacturer gradeIC1008
Material gradeSubmicron
Maximum depth of cut0.2362
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length0.8661
Overall width0.2756
Primary workpiece materialUniversal
RakePositive
Rake angle7.00; 90.00
StandardsISO 13399
