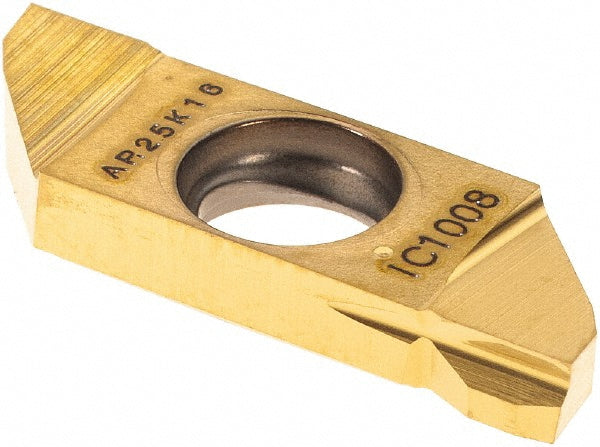

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6405420
MFR# 6405420ISO/ANSI# ISO 13399Cat# SCIR 22-AR00-25K16Series Swisscut
$49.75List $62.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405420 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Cutting height0.2756
Full radiusNo
Insert holding methodScrew
Insert materialSolid Carbide
Insert size22
Insert size code22AR0025K16
Insert styleSCIR
Iso codeISO 13399
Manufacturers catalog numberSCIR 22-AR00-25K16
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1496
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
Rake angle8.00
Single or double endSingle
StandardsISO 13399
