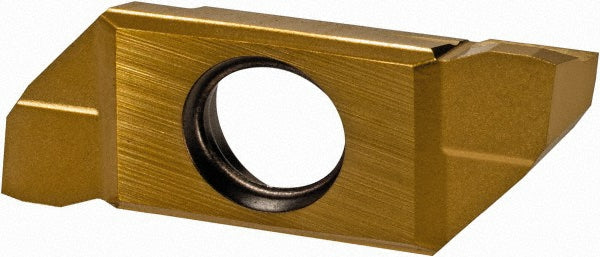

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6405421
MFR# 6405421ISO/ANSI# ISO 13399Cat# SCIR 22-AR10-25K8Series Swisscut
$48.88List $62.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6405421 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting height0.2756
Full radiusNo
Insert holding methodScrew
Insert materialSolid Carbide
Insert size22
Insert size code22AR1025K8
Insert styleSCIR
Iso codeISO 13399
Manufacturers catalog numberSCIR 22-AR10-25K8
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1496
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
Rake angle12.00
Single or double endSingle
StandardsISO 13399
