Iscar

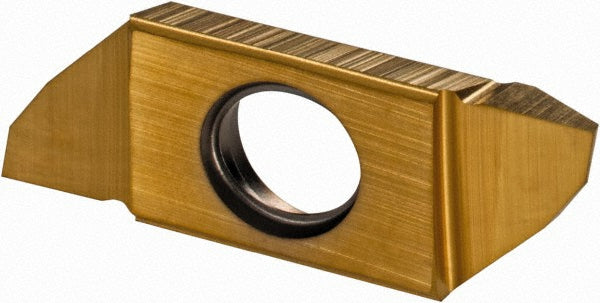

SCIR 22-ER00-07K0 Solid Carbide Insert, Grade IC1008, TiN - Iscar 6405422
MFR# 6405422ISO/ANSI# SCIR 22-ER00-07K0Cat# SCIR 22-ER00-07K0Series Swisscut
$49.75List $62.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeIC1008
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6405422 is a SCIR 22-ER00-07K0 solid carbide indexable insert, grade IC1008, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Cutting directionRight Hand
Included angle90.0
Insert holding methodScrew
Insert length0.8660
Insert materialSolid Carbide
Insert shapeIrregular
Insert size code22
Insert styleSCIR
Insert thickness0.1180
Iso codeSCIR 22-ER00-07K0
Length range0.7000 - 10.0000
Manufacturers catalog numberSCIR 22-ER00-07K0
Manufacturer gradeIC1008
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use applicationBack Turning
Multi use toolYes
RakeNeutral
Relief angle7
StandardsISO 13399
