Iscar
ISO 13399 Carbide Insert, Grade IC1008, TiAlN/TiN - Iscar 6405435
MFR# 6405435ISO/ANSI# ISO 13399Cat# SCIR 22-100R16-00Series Swisscut
$45.53List $58.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialCarbide
CoatingTiAlN/TiN
Description

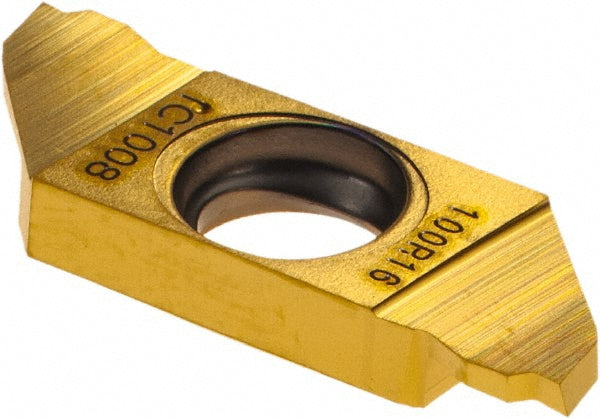

The Iscar 6405435 is a ISO 13399 carbide indexable insert, grade IC1008, TiAlN/TiN coated. Suited for universal.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0000
Cutting height0.2756
Cutting tool applicationGrooving; Parting
Cutting width0.0394
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size code22
Insert styleSCIR
Iso codeISO 13399
Lead angle16
Lead angle directionRight Hand
Manufacturers catalog numberSCIR 22-100R16-00
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1575
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
