Iscar
ISO 13399 Carbide Insert, Grade IC1008 - Iscar 6405443
MFR# 6405443ISO/ANSI# ISO 13399Series IscarThread; Swisscut
$47.79List $61.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialCarbide
Description

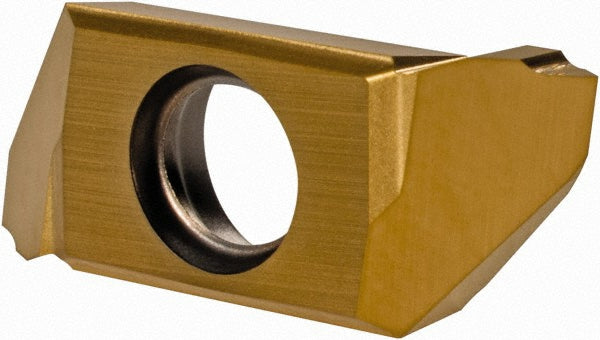

The Iscar 6405443 is a ISO 13399 carbide indexable insert, grade IC1008.
Specifications
ChipbreakerMT
Coating processPVD
Corner radius0.0010
External pitch0.30-0.90 mm; 28-83 TPI
Finish coatingCoated
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size22
Insert styleSCI
Iso codeISO 13399
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
StandardsISO 13399
Thread standardPartial Profile 60 Degree
Thread typeExternal
Tip to top of insert0.2760
Width of cutting tip0.0200
