Iscar
ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6405473
MFR# 6405473ISO/ANSI# ISO 13399Series Notch-Grip
$26.24List $33.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description

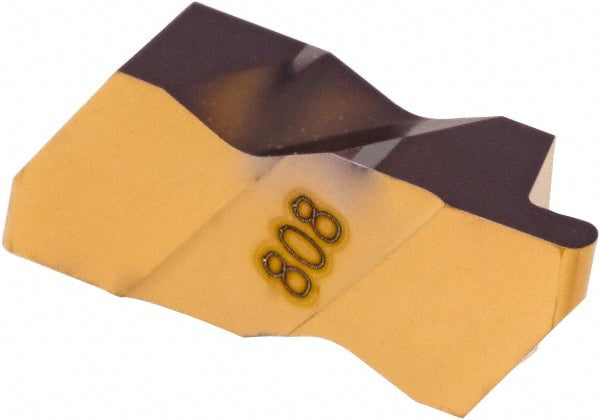

The Iscar 6405473 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting width0.0620
Full radiusNo
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3031
Insert size code3031
Insert styleINR
Iso codeISO 13399
Lead angle3
Manufacturer gradeIC808
Material gradeFine-Grained
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.9000
Overall width0.1950
Primary workpiece materialUniversal
RakePositive
Rake angle10.00
Single or double endDouble
StandardsISO 13399
