Iscar

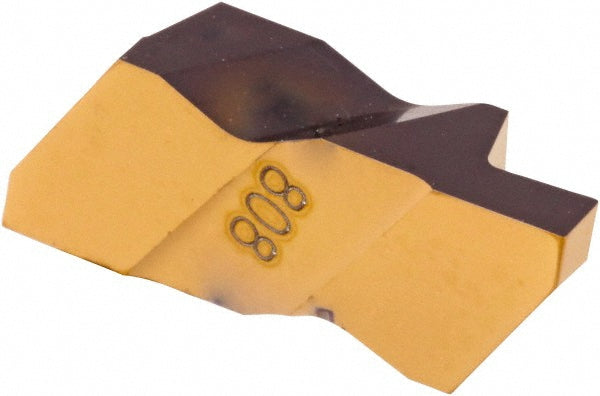

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6405483
MFR# 6405483ISO/ANSI# ISO 13399Series Notch-Grip
$26.24List $33.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6405483 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0070
Cutting width0.0940
Full radiusNo
Insert handLeft Hand
Insert materialSolid Carbide
Insert size3094
Insert size code3094
Insert styleING
Iso codeISO 13399
Lead angle3
Manufacturer gradeIC808
Material gradeFine-Grained
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Overall length0.9000
Overall width0.1950
Primary workpiece materialUniversal
RakePositive
Rake angle10.00
Single or double endDouble
StandardsISO 13399
