Iscar

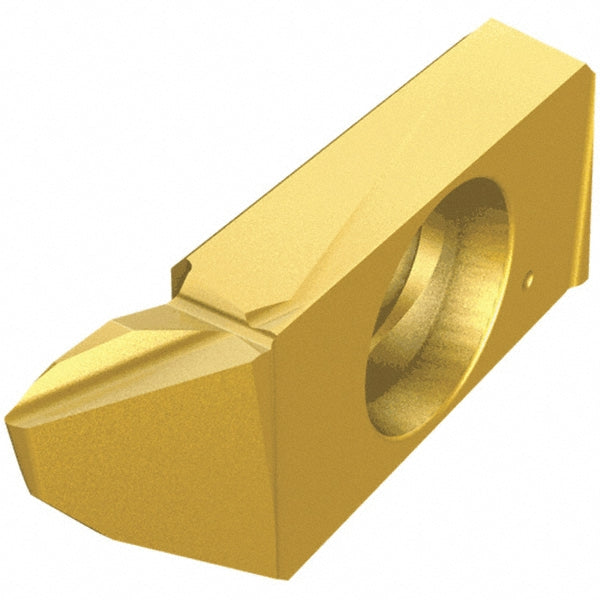

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6410051
MFR# 6410051ISO/ANSI# ISO 13399Cat# SCIR 22-BR08-10K7Series Swisscut
$48.88List $62.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6410051 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0032
Cutting height0.2756
Cutting width0.0394
Full radiusNo
Insert holding methodScrew
Insert materialSolid Carbide
Insert size22
Insert size code22BR0810K7
Insert styleSCIR
Iso codeISO 13399
Lead angle60
Manufacturers catalog numberSCIR 22-BR08-10K7
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
RakePositive
Rake angle12.00
Single or double endSingle
StandardsISO 13399
