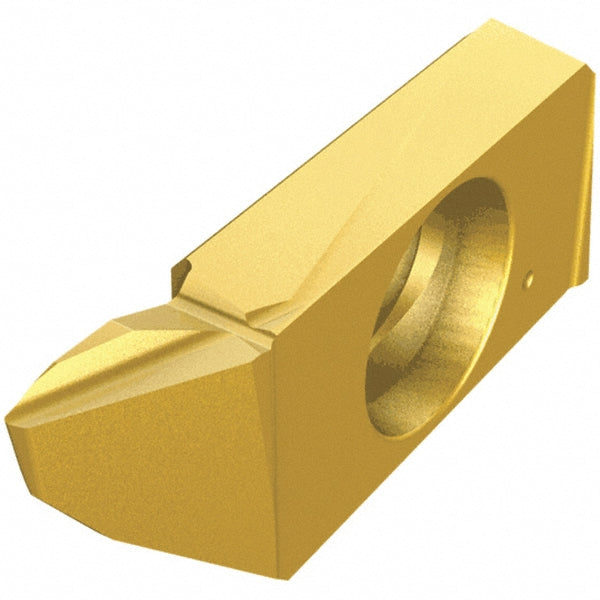

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6410053
MFR# 6410053ISO/ANSI# ISO 13399Cat# SCIR 22-BR10-05K15Series Swisscut
$48.88List $62.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6410053 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting tool applicationTurning
Cutting width0.0200
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert styleSCIR
Iso codeISO 13399
Lead angle60
Lead angle directionRight Hand
Manufacturers catalog numberSCIR 22-BR10-05K15
Manufacturer gradeIC1008
Maximum depth of cut0.1180
Multi use toolNo
Overall length0.8660
Primary workpiece materialUniversal
Relief angle12.00
StandardsISO 13399
