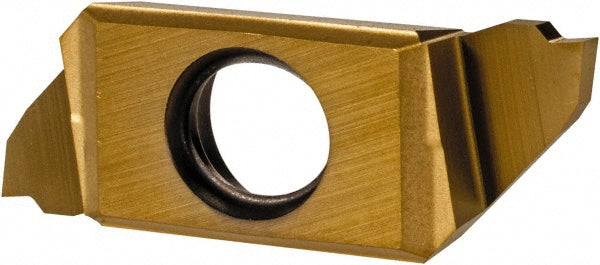

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6410069
MFR# 6410069ISO/ANSI# ISO 13399Cat# SCIR 22-100NP08Series Swisscut
$46.33List $58.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6410069 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
ChipbreakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0032
Cutting height0.2756
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.0394
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code22
Insert styleSCIR
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberSCIR 22-100NP08
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1181
Multi use toolYes
Overall length0.8661
Overall width0.1181
Primary workpiece materialUniversal
Relief angle9.00
Single or double endSingle
StandardsISO 13399
