Iscar

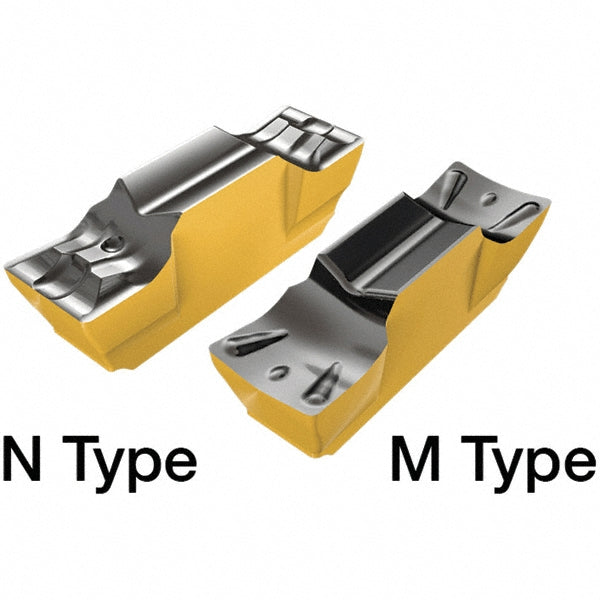

GEMI 3002N IC808 Carbide Insert, Grade IC808, AlTiN - Iscar 6411880
MFR# 6411880ISO/ANSI# GEMI 3002N IC808Series Cut Grip
$23.89List $30.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialCarbide
CoatingAlTiN
Description
The Iscar 6411880 is a GEMI 3002N IC808 carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerN
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting width0.118
Insert materialCarbide
Insert size3002
Insert size code3002N
Insert styleGEMI
Iso codeGEMI 3002N IC808
Manufacturers catalog number6411880
Manufacturer gradeIC808
Material gradeFine Grain
Maximum depth of cut0.0390
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall width0.087
Primary workpiece materialUniversal
RakePositive
Rake angle8
StandardsISO 13399
