Iscar

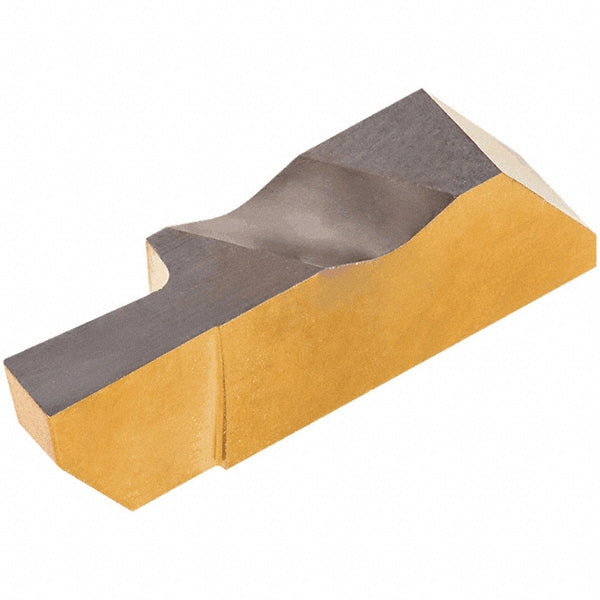

INGD3094R IC807 Solid Carbide Insert, Grade IC807, TiAlN - Iscar 6411985
MFR# 6411985ISO/ANSI# INGD3094R IC807Series Notch-Grip
$22.49List $28.80
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC807
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6411985 is a INGD3094R IC807 solid carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0075
Cutting width0.0940
Insert handRight Hand
Insert materialSolid Carbide
Insert size3094
Insert size code3094
Insert styleINGD
Insert thickness0.3440
Iso codeINGD3094R IC807
Lead angle3
Manufacturers catalog number6411985
Manufacturer gradeIC807
Material gradeSubmicron
Maximum corner radius0.0075
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length0.9900
Overall width0.1950
Primary workpiece materialUniversal
StandardsISO 13399
