Iscar

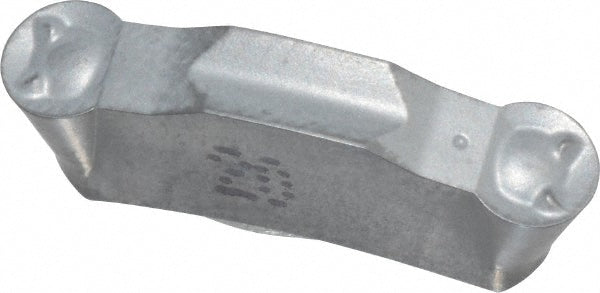

ISO 13399 Solid Carbide Insert, Grade IC20 - Iscar 6450027
MFR# 6450027ISO/ANSI# ISO 13399Series Top-Grip
$20.50List $25.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6450027 is a ISO 13399 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerF
Corner radius0.0780
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size420
Insert size code420
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC20
Material gradeC2; C3
Maximum depth of cut0.0787
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.7008
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
StyleTGMF 420
