Iscar

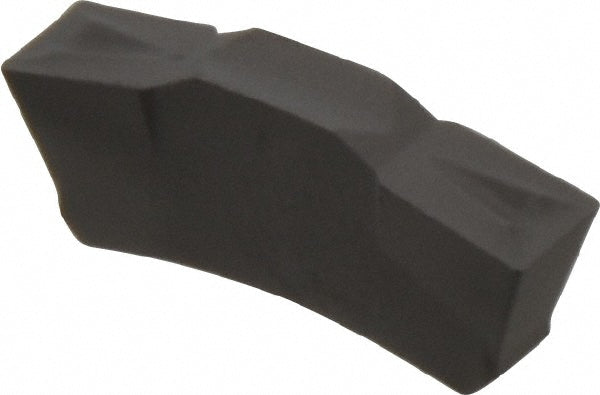

ISO 13399 Cermet Insert, Grade IC20N - Iscar 6450044
MFR# 6450044ISO/ANSI# ISO 13399Series Top-Grip
$21.09List $27.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20N
MaterialCermet
Description
The Iscar 6450044 is a ISO 13399 cermet indexable insert, grade IC20N. Suited for stainless steel, steel.
Specifications
Chip breakerF
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert materialCermet
Insert size402
Insert size code402
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC20N
Material gradeC6; C7; C8
Maximum depth of cut0.0945
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall length0.6969
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
StyleTGMF 402
