Iscar

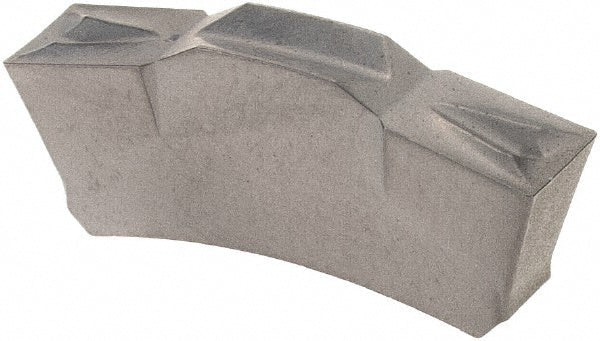

TGMF 402 Solid Carbide Insert, Grade IC20 - Iscar 6450047
MFR# 6450047ISO/ANSI# TGMF 402Cat# TGMF 402Series Top Grip
$19.21List $24.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC20
MaterialSolid Carbide
Description
The Iscar 6450047 is a TGMF 402 solid carbide indexable insert, grade IC20. Suited for universal.
Specifications
Chip breakerF
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size402
Insert size code402
Insert styleTGMF
Iso codeTGMF 402
Manufacturers catalog numberTGMF 402
Manufacturer gradeIC20
Maximum depth of cut0.5787
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.6969
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
