Iscar

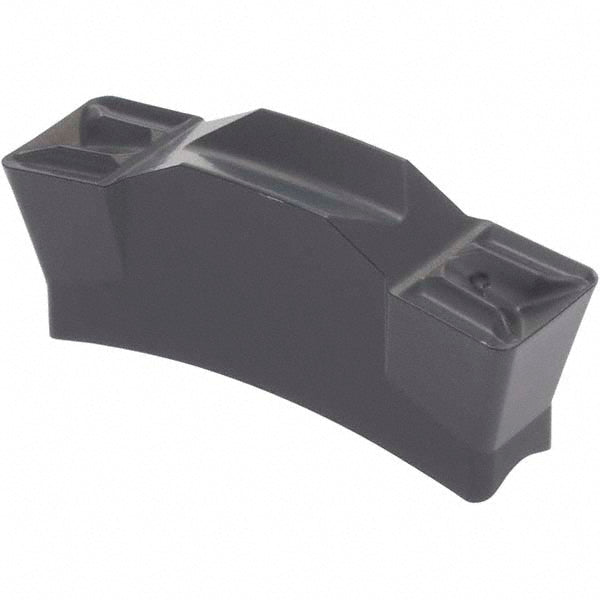

ISO 13399 Solid Carbide Insert, Grade IC428, Al2O3 - Iscar 6450053
MFR# 6450053ISO/ANSI# ISO 13399Series Top Grip
$28.26List $36.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC428
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6450053 is a ISO 13399 solid carbide indexable insert, grade IC428, Al2O3 coated. Suited for cast iron, hard material, steel.
Specifications
Chip breakerF
Coating finishAl2O3
Coating processCVD
Corner radius0.0315
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size635080
Insert size code635080
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC428
Maximum depth of cut0.7323
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.8720
Overall width0.2500
Primary workpiece materialCast Iron; Hard Material; Steel
Single or double endDouble
StandardsISO 13399
