Iscar

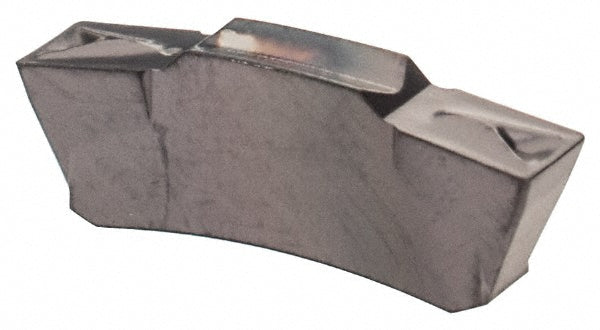

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 6450085
MFR# 6450085ISO/ANSI# ISO 13399Series Top-Grip
$24.52List $31.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 6450085 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert materialCarbide
Insert size302
Insert size code302
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC2; C6
Maximum depth of cut0.0709
Maximum depth of cut range0.0000 to 0.0750
Multi use toolNo
Overall length0.5315
Primary workpiece materialUniversal
StandardsISO 13399
