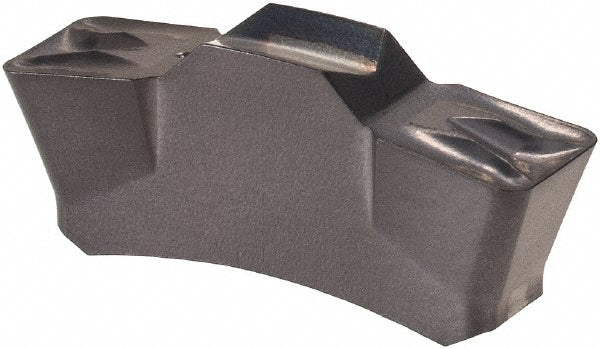

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6450087
MFR# 6450087ISO/ANSI# ISO 13399Series Top-Grip
$28.04List $35.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6450087 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0315
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size508
Insert size code508
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1181
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Overall length0.7008
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
