Iscar

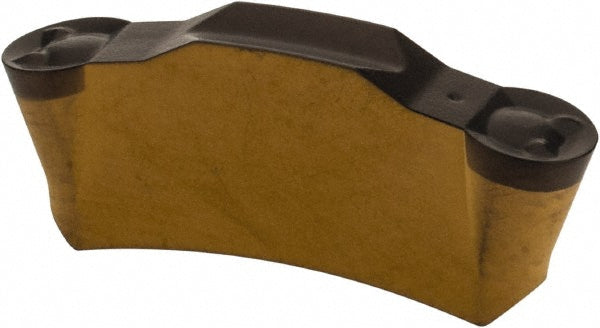

ISO 13399 Solid Carbide Insert, Grade IC8250, Al2O3 - Iscar 6450105
MFR# 6450105ISO/ANSI# ISO 13399Series Top Grip
$28.66List $36.70
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC8250
MaterialSolid Carbide
CoatingAl2O3
Description
The Iscar 6450105 is a ISO 13399 solid carbide indexable insert, grade IC8250, Al2O3 coated. Suited for stainless steel, steel.
Specifications
Coating finishAl2O3
Coating processCVD
Corner radius0.0787
Cutting width0.1575
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size420
Insert size code420
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC8250
Maximum depth of cut0.5866
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.7008
Overall width0.1575
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
