Iscar

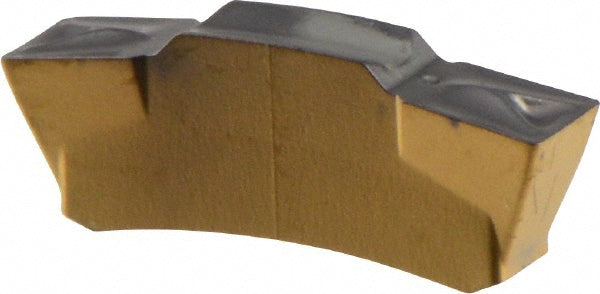

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6450110
MFR# 6450110ISO/ANSI# ISO 13399Series Top Grip
$24.52List $31.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6450110 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size302
Insert size code302
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.4134
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.5315
Overall width0.1181
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
