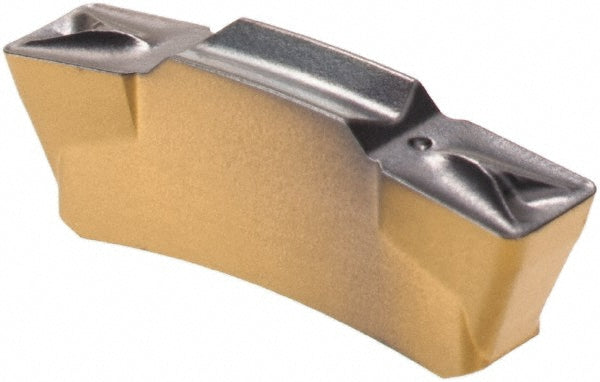

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6450111
MFR# 6450111ISO/ANSI# ISO 13399Series Top Grip
$24.52List $31.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6450111 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting width0.1180
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size304
Insert size code304
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0710
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.5335
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
