Iscar

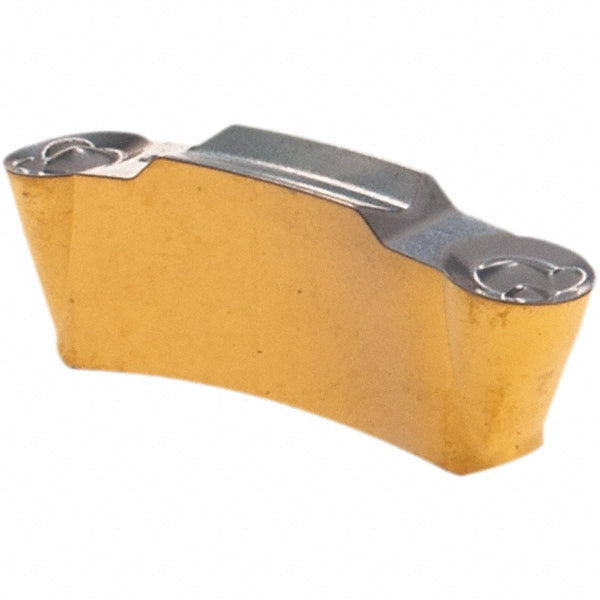

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6450112
MFR# 6450112ISO/ANSI# ISO 13399Series Top Grip
$25.46List $32.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6450112 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0590
Cutting width0.1180
Full radiusYes
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size315
Insert size code315
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.0590
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.5315
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
