Iscar

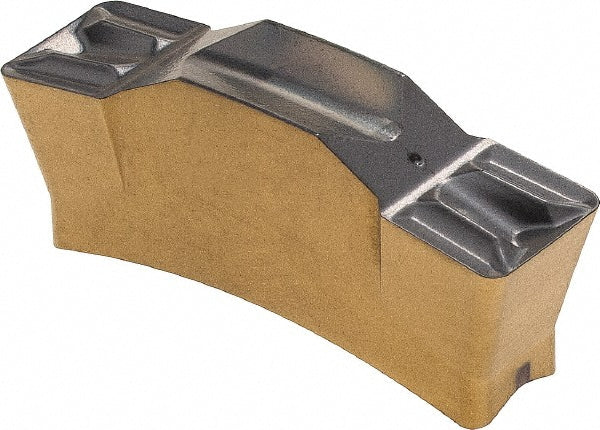

ISO 13399 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6450119
MFR# 6450119ISO/ANSI# ISO 13399Series Top Grip
$29.75List $38.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6450119 is a ISO 13399 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0315
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size635080
Insert size code635080
Insert styleTGMF
Iso codeISO 13399
Manufacturer gradeIC808
Maximum depth of cut0.1496
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.8720
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
