Iscar

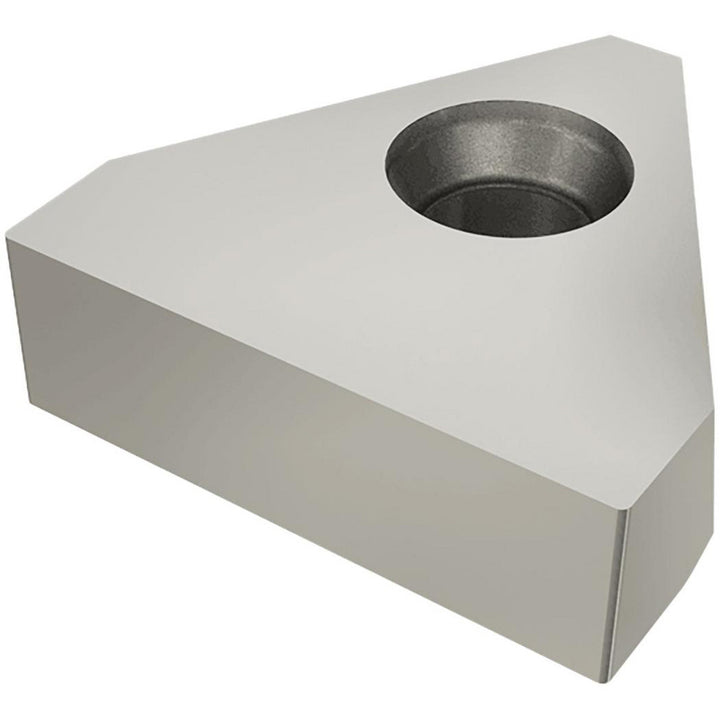

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 6482877
MFR# 6482877ISO/ANSI# ISO 13399Series V-Lock
$36.75List $37.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC08
MaterialSolid Carbide
Description
The Iscar 6482877 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Cutting height0.2500
Cutting width0.8070
Full radiusNo
Hole diameter0.2170
Included angle degree60
Inscribed circle0.2170
Insert handNeutral
Insert materialSolid Carbide
Insert size2006
Insert size code200605
Insert styleXNUW
Iso codeISO 13399
Manufacturer gradeIC08
Material gradeFine-Grained
Multi use toolYes
Overall length0.7990
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7.00
StandardsISO 13399
